3D Printable Makita Wall Hanger - Sun, Mar 31, 2019

I adore my Makita Cordless Electric drills and have long since wanted to print hangers for them to go on my walls along with other valued tools. The preexisting models I could find all were kind of corny. The challenge here was the Makita drill has a super fluid shape, nothing is square to anything.

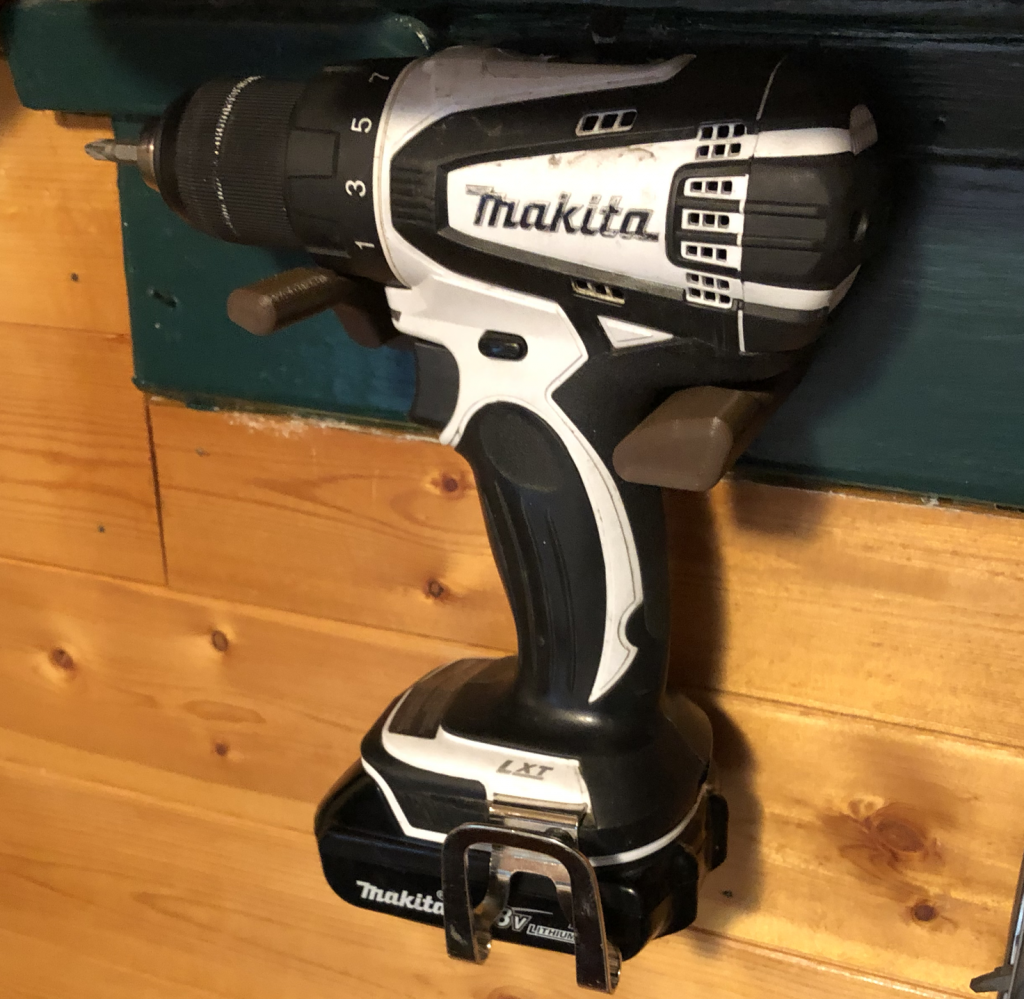

Here’s what I came up with:

The red model is what I made. I found a really impressive CAD model for a Makita drill here. This helped me not have to carefully measure my as-built drill.

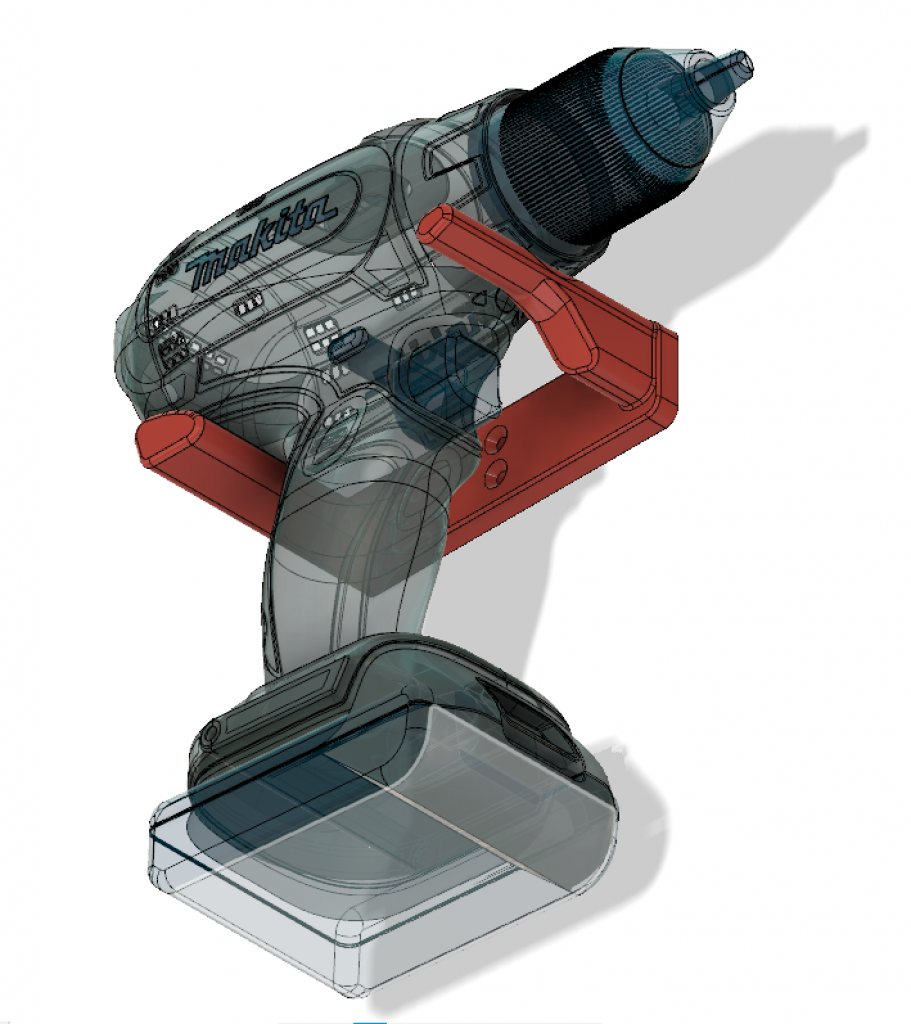

I used Fusion360 and the end result was excellent:

Links/Downloads

Here’s an export of my Fusion360 project file: MakitaWallHangerByDocDawning-20190331.f3d

A 3D printable STL has been attached to a posting I’ve made for this model here: Thingiverse
