DeltaFlyer

The DeltaFlyer printer is my implementation of an oversized Kossel Mini type delta printer.

Specs

  • 1000mm towers with 360mm sides

  • Current effective build volume is 180mm (dia) x 500mm (height)

  • Delrin rollers

  • Smoothieboard controlled

  • OctoPi interfaced – modified to also provide a private wifi network for use during travel

  • Modified with various thermal fuses for extra safety

  • Genuine E3D hotend hardware

  • Lit via Illuminatrix (another project of mine)

  • Encased in wooden frame; “The Tardis”. Adds structure for supporting components and enable the Delta Flyer to go on road trips



Live Stream


I don’t always print, but when I do, I stream here.



Example Printing



Links

Many highly relevant details of the machine are accessible below.


Historical

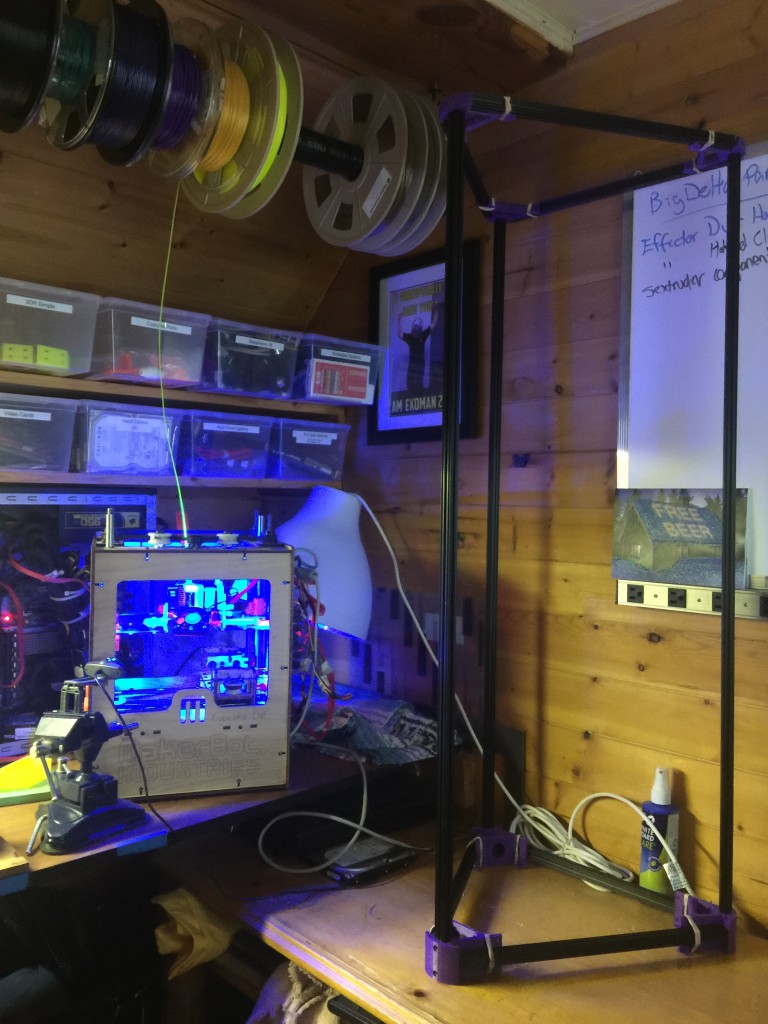

Here’s an old image from the very early days of the initial build
IMG_3480
